ATP Turbo Garrett G25-660 Bolt-On Turbo Kit w/ .92 A/R External Wastegate For 2013+ Ford Focus ST
$ 2,795.00
Product Description:

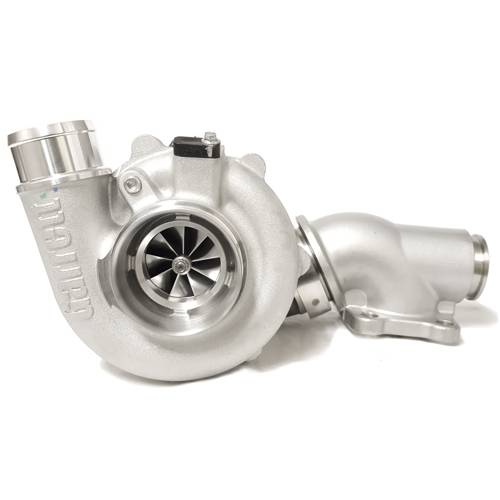

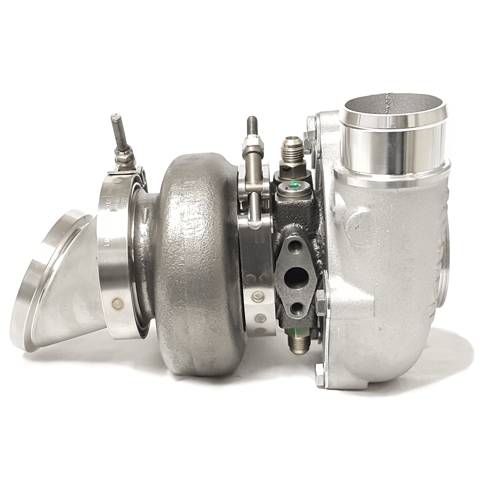

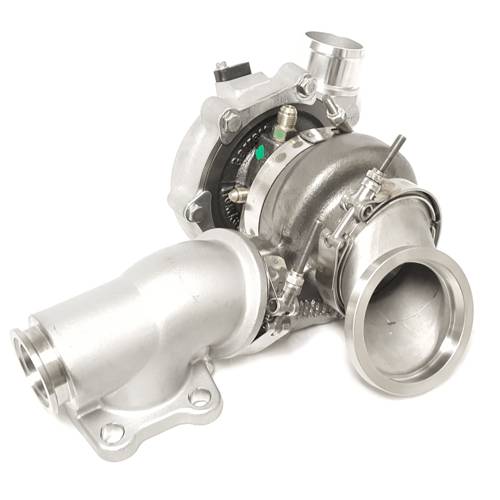

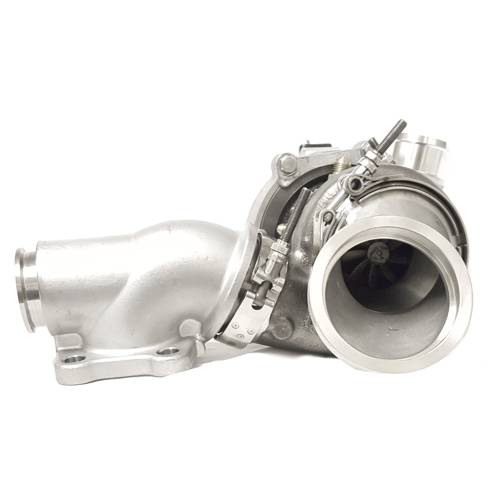

The Garrett G-Series G25-660 .92 A/R turbo kit for the Ford Focus ST 2.0L Ecoboost. Bolt on, stock location externally wastegated upgrade turbo solution. 660HP from a small frame package!
- Ultra High Flow G-Series Compressor Wheel
- Evolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
- Includes -4AN oil feed fitting and -6AN coolant/water fittings
Product Features:
- Stock Location, Direct Bolt-on
- Externally Wastegated
- Built-in external wastegate port (Tial MVS) for future expansion. Capoff provided
- V-band flanged turbo adapter (NOW Stainless Steel)
- Any stock turbo flanged downpipe will fit
- Any stock placement intake pipe will fit. Adapter elbow provided.
- Any stock placement charge pipe will fit
- New steel braided oil feed and coolant lines provided
- Fits stock oil drain tube
- MVS wastegate and dumptube sold separately
Product Specifications:
- Compressor Wheel Inducer: 54mm
- Compressor Wheel Exducer: 67mm
- Compressor Wheel Trim: 65
- Compressor Housing Inlet: 3 Inch Diameter
- Compressor Housing Outlet: 2 Inch Diameter
- Compressor Housing A/R: .70
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Exducer: 49mm
- Turbine Wheel Trim: 84
Product Applications:
- 2013+ Ford Focus ST
- 2013+ Ford Fusion 2.0L Ecoboost
